Series
|
Current
|
PRV (Volts)
|
Recovery (nS)
|
Surge (A)
|
| RWB |
5A |
50 to 1000 |
150 to |
350 |
| RAB |
3A |
50 to 1000 |
250 |
240 |
| 3RW |
1.5A |
2000 to 3000 |
250 |
200 |
| RC |
1A |
50 to 1000 |
200 |
50 |
| XMR5 |
500 mA |
5000 |
150 |
100 |
| RF,RG |
350 to 500 mA |
1600 to 3000 |
150 to 250 |
20 to 25 |
| XLR |
200 mA |
5000 to 9000 |
175 |
5.5 |
| RK |
150 mA |
3000 to 6000 |
150 to 250 |
10 |
| RM |
125 mA |
7000 to 8000 |
150 to 250 |
8 |
| RP |
100 mA |
9000 to 10000 |
150 to 250 |
7 |
| RR |
80 mA |
11000 to 12000 |
150 to 250 |
6 |
| HX |
20 to 60 mA |
1000 to 10000 |
100 |
3 |
| RVT |
50 mA |
10000 to 15000 |
100 |
5 |
| SL |
40 mA |
3000 to 12000 |
100 |
3 |
| CRVT |
25 mA |
15000 to 30000 |
100 |
.3 |
| DR |
25 mA |
3000 to 12000 |
150 |
3 |
| DL |
25 mA |
3000 to 12000 |
150 |
3 |
| SR |
25 mA |
3000 to 12000 |
100 |
3 |
| QR12 |
6 mA |
12000 |
100 |
.3 |
| TV |
5 mA |
6000 to 20000 |
100 |
.5 |
| TVR20 |
1 mA |
20000 |
100 |
.2 |
| TVR30 |
1 mA |
30000 |
100 |
.2 |
Series Model: RWB
|
5 Ampere Axial Lead Rectifiers
PRV To 1,000 Volts
High Temperature Stability
High Surge Capability
Avalanche Characteristics
|
Series Model: RAB
|
3 Ampere Axial Lead Rectifiers
PRV To 1,000 Volts
Fast Recovery
High Temperature Stability
High Surge Capability
|
Series Model: 3RW
|
High Voltage, High Current Fast Recovery Silicon Diodes
Up to 250 nSec max. Recovery Time
Small Size
Exceptionally Low Leakage
Avalanche Characteristics
|
Series Model: RC
|
Fast Recovery 200 Nanosecond Silicon Rectifier
Small Size
Low Leakage
High Temperature Stability
High Surge Capability
|
Series Model: XMR5
|
High Voltage Rectifiers For X-Ray And Industrial Applications
Epoxy Molded Package
Platinum Doped
Avalanche Characteristics
|
Series Model: RF,RG,RK,RM,RP,RR
|
High Voltage, High Current Miniature Rectifiers
Fast Recovery
Small Size molded Package
PRV 1,000 To 12,000 Volts
Avalanche Characteristics
|
Series Model: XLR
|
High Voltage Rectifiers For X-Ray And Industrial Applications
Epoxy Molded Package
Platinum Doped
Avalanche Characteristics
|
Series Model: HX
|
Miniature High Voltage Rectifiers
Small Size Epoxy Packages
Standard Recovery
PRV to 10,000 Volts
Very Low Reverse Leakage
|

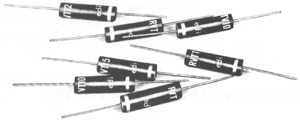

Series Model: RVT
|
High Voltage 50 mA Silicon Rectifiers
PRV To 1,000 Volts
Small Size Molded Package
PRV 10,000 To 15,000 Volts
Fast Recovery
Avalanche Characteristics
Very Low Release Leakage
|
Series Model: SL
|
High Voltage 50 mA Silicon Rectifiers
PRV To 1,000 Volts
Small Size Molded Package
PRV 10,000 To 15,000 Volts
Fast Recovery
Avalanche Characteristics
Very Low Release Leakage
|
Series Model: CRVT
|
High Voltage Silicon Rectifiers
Small Molded Package
PRV 15,000 to 30,000 Volts
Fast Recovery
Avalanche Characteristics
Low Leakage
|
Series Model: DR
|
100ns. High Voltage 25mA, Miniature Silicon Rectifiers
Small Sized Molded Package
PRV 3,000 To 12,000 Volts
Avalanche Characteristics
Low Leakage
|
Series Model: DL
|
Fast Recovery High Voltage 25mA, Miniature Silicon Rectifiers
Small Sized Molded Package
PRV 3,000 To 12,000 Volts
1.0 Inch Min. Leads
Low Leakage
|
Series Model: SR
|
100ns. High Voltage 25mA, Miniature Silicon Rectifiers
Small Sized Molded Package
PRV 3,000 To 12,000 Volts
Avalanche Characteristics
Low Leakage
|
Series Model: TVR20,30
|
High Voltage Silicon Diode for CRT Applications
This high voltage fast recovery diode was developed for assembly or encapsulation and is intended primarily for use as a building block in the assembly of high voltage circuits for black/white TV and similar service.
|
|
**Specifications subject to changes**
