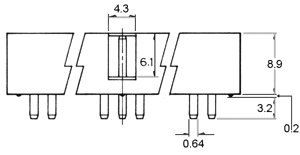

 201 Series Headers
Low Profile Box Header .100" x .100"
 Features
  • Designed for applications where space savings are critical
  • Low profile Header
  • Provides mechanical polarization with full shrouding when mated with socket connectors that have center polarization tab
  • Dual polarization slots and 4-sided shrouding provides foolproof polarization in both Horizontal and Vertical planes
    		•

    Specifications

    Material
    Contact . . . . . . Brass
    Plating . . . . . . Gold over Nickel
    Insulator . . . . . . PBT & 30% Glass Fiber Rated 94V-0

    Electrical
    Current rating . . . . . . 1amp
    Contact resistance. . . . . . . 30 milliohms max @ DC 100 milliamps
    Insulation resistance . . . . . . 1000 megohm min @ 500 VDC

    Mechanical
    Operating temp . . . . . . -55deg C to +105deg C

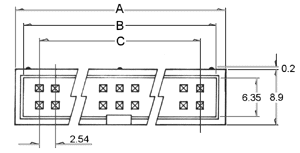

    Pins
    A
    B
    C
    10
    20.32/.800"
    17.78/.700"
    10.16/.400"
    14
    25.40/1.000"
    22.86/.900"
    15.24/.600"
    16
    27.94/1.100"
    25.40/1.000"
    17.78/.700"
    20
    33.02/1.300"
    30.48/1.200"
    22.86/.900"
    26
    40.64/1.600"
    38.10/1.500"
    30.48/1.200"
    30
    45.75/1.800"
    43.18/1.700"
    35.56/1.400"
    34
    50.80/2.000"
    48.26/1.900"
    40.64/1.600"
    40
    58.42/2.300"
    55.88/2.200"
    48.26/1.900"
    50
    71.12/2.800"
    68.58/2.700"
    60.96/2.400"
    60
    83.82/3.300"
    81.28/3.200"
    75.65/2.980"
    64
    88.90/3.500"
    86.36/3.400"
    78.74/3.100"

    Part Builder and Ordering Information
    201

    201 -   20 -   S

    Series     Number of Pins   Type
    201     10
    14
    16
    20
    26
    30
    34
    40
    50
    60
    64    		       S = Straight
    R = Right Angle


    **Specifications subject to changes**
