 202 Series Connectors
IDC Socket Connector .100" x .100"
 Features
  • Polarized and Non-Polarized versions available
  • Conforms to MIL-C-83503 Specifications
  • Mates with .025" sq. posts of 200,201 and 203 series
  • Quick and positive termination with 28 awg. flat cable
  • Available with Strain Relief (optional)
    		•

    Specifications

    Material
    Contact . . . . . . Phosphur Bronze
    Plating . . . . . . Gold over Nickel on contact, Tin on terminal
    Insulator . . . . . . PBT & 30% Glass Fiber Rated 94V-0

    Electrical
    Current rating . . . . . . 1amp
    Contact resistance. . . . . . . 30 milliohms max @ DC 100 milliamps
    Insulation resistance . . . . . . 1000 megohm min @ 500 VDC

    Mechanical
    Operating temp . . . . . . -55deg C to +105deg C

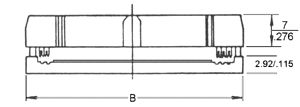

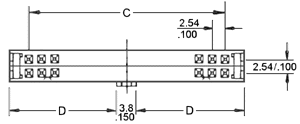

    Contacts
    A
    B
    C
    D
    10
    11.43/.450"
    17.27/.680"
    10.16/.400"
    6.74/.265"
    14
    16.51/.650"
    22.35/.880"
    15.24/.600"
    9.28/.365"
    16
    9.05/.750"
    24.89/.980"
    17.78/.700"
    10.55/.415"
    20
    24.13/.950"
    29.97/1.180"
    22.86/.900"
    13.09/.515"
    24
    29.21/1.150"
    35.05/1.380"
    27.94/1.100"
    15.63/.615"
    26
    31.75/1.250"
    37.59/1.480"
    30.48/1.200"
    16.9/.665"
    30
    36.83/1.450"
    42.67/1.680"
    35.56/1.400"
    19.44/.765"
    34
    41.91/1.650"
    47.75/1.880"
    40.64/1.600"
    21.98/.865"
    40
    49.53/1.950"
    55.37/2.180"
    48.26/1.900"
    25.79/1.015"
    50
    62.63/2.450"
    68.07/2.680"
    60.96/2.400"
    32.14/1.265"
    60
    74.93/2.950"
    80.77/3.180"
    73.66/2.900"
    38.49/1.515"
    64
    80.01/3.150"
    85.85/3.380"
    78.74/3.100"
    41.03/1.615"

    Part Builder and Ordering Information
    202

    202 -   10 -   P -   1

    Series Number of Contacts     Type   Strain Relief Option
    202 10
    14
    16
    20
    26
    30
    34
    40
    50
    60
    64    		     P = Polarized
    N = Non-Polarized    		       1 = with Strain Relief
    0 = without Strain Relief


    **Specifications subject to changes**
