	205 Series Headers

Female PCB Header .100" x .100"

Features

Straight and Right Angle versions available

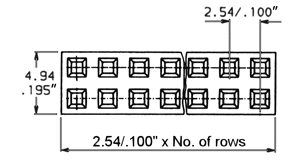

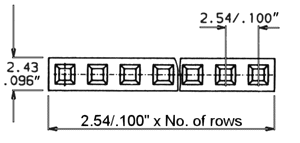

Single and Double row versions available

Both single and double row versions are Stackable

Single row available with 2 to 40 pins and the double row from 4 to 80 pins

Specifications

Material
Contact . . . . . .	Phosphur Bronze
Plating . . . . . .	Gold over Nickel on contact, tin on terminal
Insulator . . . . . .	PBT & 30% Glass Fiber Rated 94V-0
Electrical
Current rating . . . . . .	1amp
Contact resistance. . . . . . .	30 milliohms max @ DC 100 milliamps
Insulation resistance . . . . . .	1000 megohm min @ 500 VDC
Mechanical
Operating temp . . . . . .	-55deg C to +105deg C
