 206 Series Connectors
Edge Card Connector (Slot) 2.54mm/.100"
 Features
  • 2.54mm/.100" contact center pitch
  • Bifurcated anti-lever beam type
  • Accepts PCB thickness of 1.4 to 1.6mm
  • Designed for easy insertion and extraction
    		•

    Specifications

    Material
    Contact . . . . . . Phosphur Bronze
    Plating . . . . . . Gold Flash, Gold plating
    Insulator . . . . . . .PBT Rated 94V-0

    Electrical
    Current rating . . . . . . 3 amp
    Contact resistance. . . . . . . 20 milliohms max
    Insulation resistance . . . . . . 5000 megohm min

    Mechanical
    Operating temp . . . . . . -55deg C to +105deg C

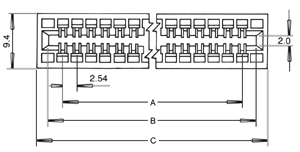

    Contacts
    A
    B
    C
    12
    12.70/0.5"
    17.98/0.708"
    21.84/0.86"
    20
    22.86/0.9"
    28.14/1.108"
    32.00/1.26"
    24
    27.94/1.1"
    33.22/1.308"
    37.08/1.46"
    26
    30.48/1.2"
    435.56/1.400"
    39.62/1.56"
    28
    33.02/1.3"
    38.30/1.508"
    42.16/1.66"
    30
    35.56/1.4"
    40.64/1.600"
    44.70/1.76"
    36
    43.18/1.7"
    48.26/1.900"
    52.32/2.06"
    40
    48.26/1.9"
    53.24/2.096"
    57.40/2.26"
    44
    53.34/2.1"
    58.32/2.296"
    62.48/2.46"
    50
    60.96/2.4"
    66.04/2.600"
    70.10/2.76"
    60
    73.66/2.9"
    78.64/3.100"
    82.80/3.26"
    62
    76.20/3.0"
    81.28/3.200"
    85.34/3.36"
    72
    88.90/3.5"
    93.98/3.700"
    98.04/3.86"
    80
    99.06/3.9"
    104.04/4.096"
    108.20/4.26"
    86
    106.68/4.2"
    111.66/4.396"
    115.82/4.56"
    98
    129.50/5.109"
    134.60/5.300"
    138.70/5.46"

    Part Builder and Ordering Information
    206

    206 -   12 -   GF

    Series     Number of Pins   Plating Option
    206     12
    20
    24
    26
    30
    36
    40
    44
    50
    60
    62
    72
    80
    86
    98    		       GF = Gold Flash
    1G = 15U" Gold Plating
    2G = 20U" Gold Plating


    **Specifications subject to changes**
