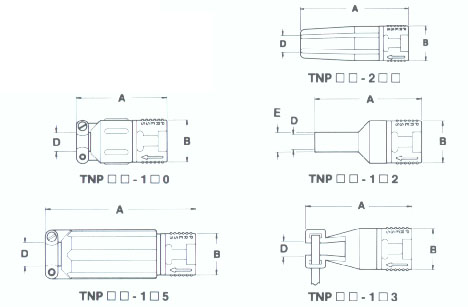

Plug Backshell Assembly Dimensions
Plugs can be made up into plug backshell assemblies by ordering them with any of the five backshells available.
|
PLUG BACKSHELL ASSEMBLY DIMENSIONS |
| NUMBER OF
CONTACTS |
PART NUMBER |
A |
B Dia. |
D Dia. |
E Dia. |
| 7 |
TNP07 - 1 X 0 |
1.14
(28.9) |
.51
(12.9) |
.23
(5.8) |
-- |
| 7 |
TNP07 - 1 X 2 |
1.33
(33.7) |
.51
(12.9) |
.18
(4.5) |
.25
(6.3) |
| 7 |
TNP07 - 1 X 3 |
1.33
(33.7) |
.51
(12.9) |
.18
(4.5) |
-- |
| 7 |
TNP07 - 1 X 5 |
1.89
(48.0) |
.51
(12.9) |
.30
(7.6) |
-- |
| 7 |
TNP07 - 2 X 1 |
1.55
(38.8) |
.51
(12.9) |
.265
(6.6) |
-- |
| 7 |
TNP07 - 2 X 2 |
1.55
(38.8) |
.51
(12.9) |
.265
(6.6) |
-- |
| 7 |
TNP07 - 2 X 3 |
1.55
(38.8) |
.51
(12.9) |
.265
(6.6) |
-- |
| 12 |
TNP12 - 1 X 0 |
1.14
(28.9) |
.61
(15.5) |
.30
(7.6) |
-- |
| 12 |
TNP12 - 1 X 2 |
1.33
(33.7) |
.61
(15.5) |
.25
(6.3) |
.31
(7.8) |
| 12 |
TNP12 - 1 X 3 |
1.33
(33.7) |
.61
(15.5) |
.25
(6.3) |
-- |
| 12 |
TNP12 - 1 X 5 |
1.91
(48.5) |
.61
(15.5) |
.34
(8.6) |
-- |
| 12 |
TNP12 - 2 X 4 |
1.55
(38.8) |
.61
(15.5) |
.345
(8.6) |
-- |
| 12 |
TNP12 - 2 X 5 |
1.55
(38.8) |
.61
(15.5) |
.345
(8.6) |
-- |
| 12 |
TNP12 - 2 X 6 |
1.55
(38.8) |
.61
(15.5) |
.345
(8.6) |
-- |
| 24 |
TKP24 - 1 X 0 |
1.14
(28.9) |
.81
(20.6) |
.34
(6.6) |
-- |
| 24 |
TKP24 - 1 X 2 |
1.33
(33.7) |
.81
(20.6) |
.31
(7.8) |
.37
(9.3) |
| 24 |
TKP24 - 1 X 3 |
1.33
(33.7) |
.81
(20.6) |
.31
(7.8) |
-- |
| 24 |
TKP24 - 1 X 5 |
2.06
(52.3) |
.81
(20.6) |
.50
(12.7) |
-- |
| RECEPTACLES AND BACKSHELL ASSEMBLY DIMENSIONS |
| NUMBER OF CONTACTS |
PART NUMBER |
A±.020 (.51) |
B Dia. |
D Dia. |
E Dia. |
| 7 |
TBR/TNR07 - 1 X 0 - X |
1.25
(31.7) |
.41
(10.4) |
.23
(5.8) |
-- |
| 7 |
TBR/TNR07 - 1 X 2 - X |
1.44
(36.5) |
.41
(10.4) |
.18
(4.5) |
.25 |
| 7 |
TBR/TNR07 - 1 X 3 - X |
1.44
(36.5) |
.41
(10.4) |
.18
(4.5) |
-- |
| 7 |
TBR/TNR07 - 1 X 5 - X |
2.00
(50.8) |
.41
(10.4) |
.18
(4.5) |
-- |
| 7 |
TBR/TNR07 - 2 X 1 - X |
1.65
(41.3) |
.41
(10.4) |
.265
(6.6) |
-- |
| 7 |
TBR/TNR07 - 2 X 2 - X |
1.65
(41.3) |
.41
(10.4) |
.265
(6.6) |
-- |
| 7 |
TBR/TNR07 - 2 X 3 - X |
1.65
(41.3) |
.41
(10.4) |
.265
(6.6) |
-- |
| 12 |
TBR/TNR12 - 1 X 0 - X |
1.65
(41.3) |
.41
(10.4) |
.265
(6.6) |
-- |
| 12 |
TBR/TNR12 - 1 X 2 - X |
1.44
(36.5) |
.50
(12.7) |
.25
(6.3) |
.31 |
| 12 |
TBR/TNR12 - 1 X 3 - X |
1.44
(36.5) |
.50
(12.7) |
.25
(6.3) |
-- |
| 12 |
TBR/TNR12 - 1 X 5 - X |
2.02
(51.3) |
.50
(12.7) |
.34
(8.6) |
-- |
| 12 |
TBR/TNR12 - 2 X 4 - X |
1.65
(41.3) |
.50
(12.7) |
.345
(8.6) |
-- |
| 12 |
TBR/TNR12 - 2 X 5 - X |
1.65
(41.3) |
.50
(12.7) |
.345
(8.6) |
-- |
| 12 |
TBR/TNR12 - 2 X 6 - X |
1.65
(41.3) |
.50
(12.7) |
.345
(8.6) |
-- |
| 24 |
TKR/TFR24 - 1 X 0 - X |
1.25
(31.7) |
.68
(17.4) |
.34
(7.8) |
-- |
| 24 |
TKR/TFR24 - 1 X 2 - X |
1.44
(36.5) |
.68
(17.4) |
.31
(7.8) |
.37 |
| 24 |
TKR/TFR24 - 1 X 3 - X |
1.44
(36.5) |
.68
(17.4) |
.31
(7.8) |
-- |
| 24 |
TKR/TFR24 - 1 X 5 - X |
2.17
(55.1) |
.68
(17.4) |
.50
(12.7) |
-- |
Part Builder and Ordering Information
Note: Part numbers on this page do not include contacts pins
|
| TNP |
07 |
|
|
1 |
|
0 |
1 - |
P |
 |
 |
|
|
|
|
 |
|
|
| Series |
Connector
Size |
|
|
|
|
Color |
|
Locking
Style |
| TNP - Plug Assembly |
07 = 7 Contacts |
|
|
|
|
0 = Gray |
|
P = POSI-LOK |
| TKP - Plug Assembly |
12 = 12 Contacts |
|
|
|
|
1 = black |
|
V = V-LOK |
| TBR - Bulkhead Receptacle Assembly |
24 = 24 Contacts |
|
|
|
|
|
|
| TNR - Square Flanged Receptacle Assembly |
(TKP, TKR, & TFR 24 position only) |
|
|
|
|
|
|
| TKR - Bulkhead Receptacle Assembly |
|
|
|
|
|
|
|
| TFR - Square Flanged Receptacle Assembly |
|
|
|
|
|
|
|
|
