Bulkhead Mounted Receptacles
BULKHEAD MOUNTED RECEPTACLES
All receptacles are available in 7, 12 or 24 contacts in gray or black.
POSI-LOK and V-LOK styles are offered. This receptacle can be used for cable applications or bulkhead mounted with a retaining ring which is
supplied as part of the assembly.

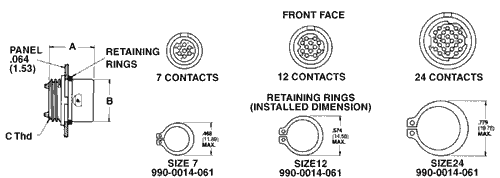

Bulkhead Mounted Receptacles Dimensions
All dimensions in inches and (millimeters). Tolerance @ .010 (.25) unless otherwise specified.
NUMBER OF CONTACTS
PART NUMBER
A
B Dia.
C Thd
7
TBR07-1X1-X
.74 (18.7)
.41 (10.4)
13/32-16 stub acme
12
TBR12-1X1-X
.74 (18.7)
.50 (12.7)
1/2-16 stub acme
24
TKR24-1X1-X
.74 (18.7)
.68 (17.4)
11/16-16 stub acme
Mounting Hole Sizes
NUMBER OF CONTACTS
G
H dia.
7
.470 (11.9)
.420 (10.6)
12
.565 (14.3)
.510 (12.9)
24
.760 (19.3)
.700 (17.7)
Part Builder and Ordering Information
Note: Part numbers on this page do not include contacts pins & backshells. To order bulkhead mounted receptacles separately, use ordering diagram below. Click Here to order other assemblies.
0 Item
