Square Flange Mounted Receptacles
Square Flange Mounted Receptacles
All square flange receptacles are available in 7,12 or 24 contacts in gray or black. Both POSI-LOK and
V-LOK latching styles are offered.

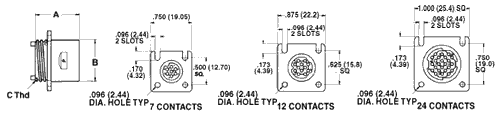

Square Flange Mounted Receptacles Dimensions
All dimensions in inches and (millimeters). Tolerance @ .010 (.25) unless otherwise specified.
NUMBER OF CONTACTS
PART NUMBER
A
B Dia.
C Thd
7
TNRO7-1X1-X
.74 (18.7)
.406 (10.3)
13/32-16 stub acme
12
TNRI2-1X1-X
.74 (18.7)
.50 (12.7)
1/2-16 stub acme
24
TFR24- 1X1-X
.74 (18.7)
.687 (17.4)
11/16-16 stub acme

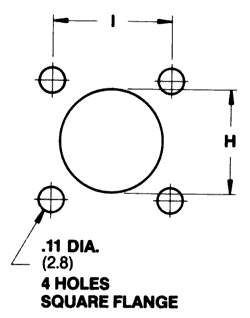

Mounting Hole Sizes
NUMBER OF CONTACTS
H dia.
I
7
.420 (10.6)
.500 (12.7)
12
.510 (12.9)
.625 (15.8)
24
.700 (17.7)
.750 (19.0))
Part Builder and Ordering Information
Note: Part numbers on this page do not include contacts pins & backshells. To order square flange receptacles separately, use ordering diagram below. Click Here to order other assemblies.
